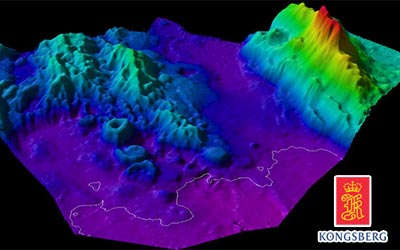

The EM 712 multibeam echo sounder is a high to very high resolution seabed mapping system capable of meeting all relevant survey standards. The minimum acquisition depth is from less than 3 m below its transducers, to a maximum of approximately 3500 m, somewhat dependant upon array size. Across track coverage (swath width) is up to 5.5 times water depth, with a maximum of more than 3500 m.
The EM 712 operates at sonar frequencies in the 40 to 100 kHz range. The transmit fan is divided into three sectors to maximize range capability, but also to suppress interference from multiples of strong bottom echoes. The sectors are transmitted sequentially within each ping, and uses distinct frequencies or waveforms. EM 712S and EM 712RD both use CW pulses of different lengths. The full performance version, EM 712, supports even longer, compressible waveforms (FM sweep)
The system applies beam focusing to both transmit and receive beams in order to obtain the maximum resolution even inside the acoustic near-field.
During transmission, focusing is applied individually to each transmit sector with a focus point on the range defined by the previous ping, to retain the angular resolution in the near field.
Dynamic focusing is applied to all receive beams. The transmit beams are electronically stabilised for roll, pitch and yaw, while the receive beams are stabilised for roll movements.
The active elements of the EM 712 transducers are based upon composite ceramics, a design which has several advantages, in particular increased bandwidth and tighter performance tolerances. Normal transducer mounting is flush with the hull, in a blister or in a gondola. The 1x2 degrees and 2x2 degrees versions can be mounted on a pole for portable deployment.
The EM 712 electonics consist of Transmitter Unit, Receiver unit, Prosessing unit and Work station. The EM 712 electronics system is a true wideband design. The transmitter circuits are fully programmable to support any frequency or pulse form. The use of FM sweep as a pulse form allows for more energy per pulse and thus increased range performance, without any sacrifice of range resolution. Filters, correlators and beamformers are fully digital implementations, and the beam forming method is by time delays, to allow for the wide frequency band of the system.Read More
